Saturn with a DFK 21AU04.AS camera, Skymax 127 and some Python code

I have been writing Python code using OpenCV3 to capture images and AVIs from a DFK 21AU04.AS camera.
Using a Skymax 127 and a 2.5 x Barlow, an AVI of Saturn was captured using a Huffman lossless compression fourcc code. there is currently a problem using the uncompressed codec, which used to work but at the moment does not. This is not much of a problem as the compression used is lossless. The AVI produced was imported into VirtualDub running in Wine and saved as an uncompressed AVI which could then be read by Autostakkert!

Screenshot of the program running on an Ubuntu laptop, capturing an AVI of Saturn

Saturn, wavelet processed in Registax 5.1 and post processed in the Gimp 2.10

Controlling a tethered Canon 4000D DSLR with a Raspberry Pi4B and AstroDMx Capture for the Raspberry Pi

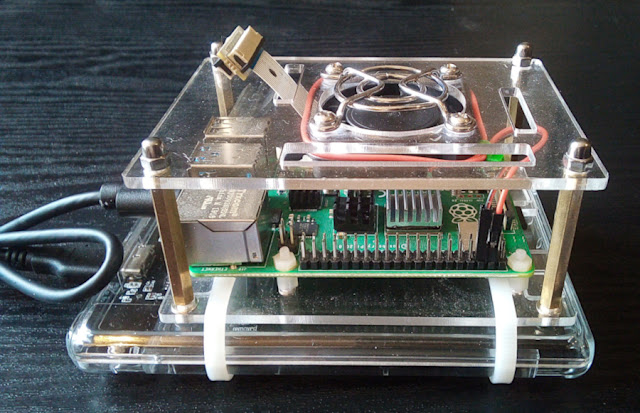

A Raspberry Pi4B was mounted in an open, acrylic case fitted with a fan. The fan was mounted upside down so that it blows air down onto the SOC, RAM and network chips which were all fitted with aluminium heat sinks. The heat sink for the SOC was a CPU heatsink and the heatsink for the 4GB RAM chip was a cut down CPU heat sink, cut to fit the RAM chip exactly. The reported temperatures of the CPU and GPU were only 29 degrees Celsius during the capturing session.

A 120 GB SSD was fitted inside a USB 3.0 caddy and was connected to a USB3.0 port of the Raspberry Pi4B. The SSD case was attached to the Raspberry Pi case with cable ties. Small rubberised plastic feet were stuck to the base of the Pi and the SSD caddy to protect any surface the device is placed on.

The Raspberry Pi

The System was set up to boot and run from the SSD and the SSD was used to store the image results as Tiff files.
The Raspberry Pi was connected via HDMI to a 10.1 inch HD monitor and was controlled by a Raspberry Pi Mouse and keyboard.

The imaging setup

A Canon EOS 4000D DSLR camera was placed at the Newtonian focus of a Skywatcher Explorer 130 PDS 130mm, f/5 Newtonian and tethered to the Raspberry Pi.
AstroDMx Capture for the Raspberry Pi was used to capture 25 x 90s exposures at ISO 3200 of the Omega (Swan) nebula with 5 matching dark-frames.
The data were transferred quickly by USB3.0 to a MacBook Air for processing.
Deep Sky Stacker running in Wine was used to stack the best 24 images. The resulting image was post processed in The Gimp 2.10, Neat Image and FastStone; the latter two running in Wine.

The Omega nebula

This was a quick demonstrator of the system under conditions of poor transparency and without a light-pollution filter. Nevertheless, it can be seen that the Raspberry Pi4B is very suitable for astronomical imaging.

Nicola has built the necessary tool chains and cross compiler so that the software can be run on the Pi. The software will be released about the same time as the next version of AstroDMx For Linux, with DSLR support as well as a version for macOS.
